Educational Miniature TurboPi Raspberry Pi Omnidirectional Mecanum Wheels Robot Car Kit

From $99.99
In Stock Pre order Out of stock

Package: Choose an option

Without Raspberry Pi Board
With Raspberry Pi CM4 (4GB)
With Raspberry Pi 4B (4GB)
With Raspberry Pi 4B (8GB)
Add to Wishlist

Guaranteed Safe Checkout

shopify payapple paygoogle paypaypalvisamasteramerican express
Vendor: Hiwonder
Type: Robotics
SKU:
Tags: Robotics
🔔 Description

TurboPi Raspberry Pi Omnidirectional Mecanum Wheels Robot Car Kit with Camera, Open Source, Python for Beginners

Product Description
TurboPi is a smart vision robot car powered by Raspberry Pi. It is built on a Mecanum-wheel chassis, adopts high-performance pan-tilt servos, HD camera and 4-ch line follower, and can be programmed in Python. With its impressive capabilities, TurboPi unlocks diverse AI applications.
TurboPi is a smart vision robot car powered by Raspberry Pi. It is built on a Mecanum-wheel chassis, adopts high-performance pan-tilt servos, HD camera and 4-ch line follower, and can be programmed in Python. With its impressive capabilities, TurboPi unlocks diverse AI applications.
360° Omnidirectional Movement
With 4 omnidirectional mecanum wheels, TurboPi can move 360°. Different movement modes (move forward, horizontally, diagonally and rotate ) and excellent perform-ance make it bold to challenge various complicated routes.
2DOF Pan-tilt for 360° View
Equipped with two anti-blocking servos, pan-tilt can rotate 130°vertically and 180° horizontally, which contributes to 360° camera field of view.

Face Detection and Tracking

TurboPi can track human face within its field of view, and move with it.

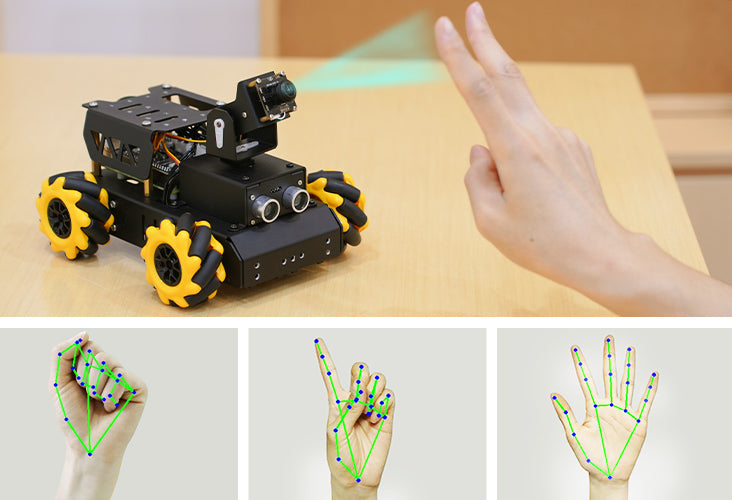

Gesture Recognition, Man-robot Interaction

TurboPi cooperates with OpenCV to count fingers. Then interact with you based on the number of finger, such as honk horn, twist and change color of light.

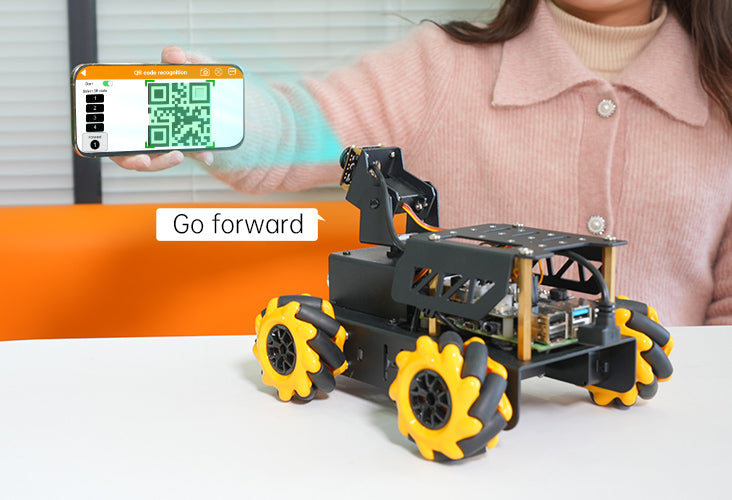

QR Code Control

TurboPi can recognize and read QR code to perform related actions.

It combines 4-channel line follower and camera to achieve autonomous driving. Line follower is responsible for line following function, and camera is used to recognize traffic light and road signs.
Following with 4-channel Line Follower
TurboPi uses 4 infrared probes on 4-channel line follower to detect and follow line.
Vision Line Following
To achieve line following, it extracts ROI area with OpenCV first. Then remove noise to locate the line on binary image. Lastly, use PID algorithm to perform direction calibration.
Hardware Features
Hard Aluminium Alloy Chassis
It protects the core control board from shattering and shocking and can bear bigger load!
High Performance Pan Tilt Servo
2DOF pan tilt is equipped with micro anti-blocking servo which has higher accuracy and longer service life.
HD Wide Angle Camera
Loaded with HD wide-angle camera, TurboPi can look around 180°, and up and down 180°. Combined with mecanum chassis car, its visual range is up to 360°.
4-channel Line Follower
4-channel line follower with IIC interface enables TurboPi to detect black line without occupying Raspberry Pi CPU.

Powered by Raspberry Pi

TurboPi is powered by Raspberry Pi 4B or CM4 controller allowing you to embark on motion control, machine vision, and OpenCV projects.

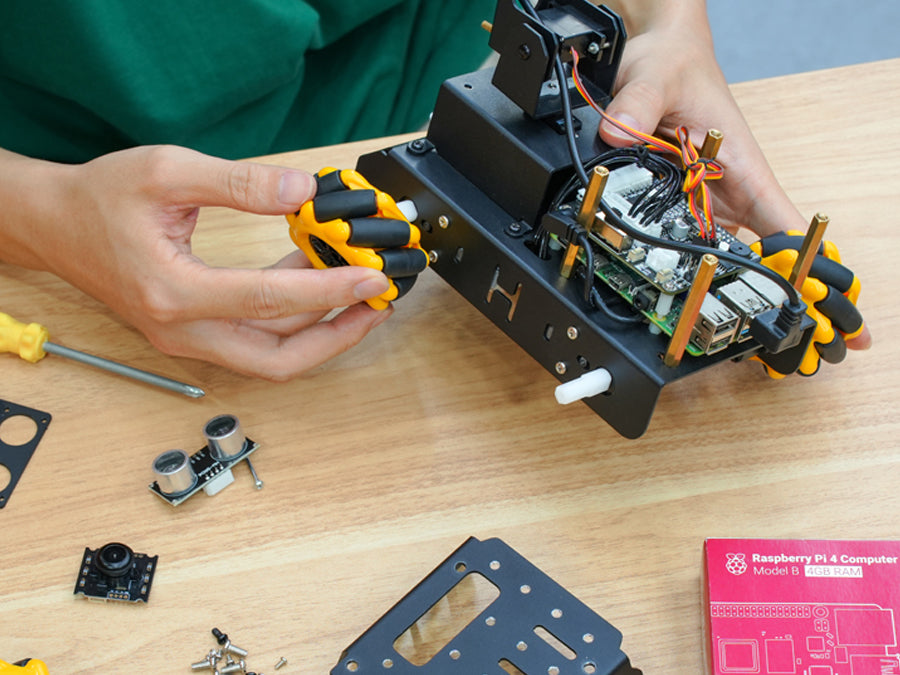

Easy to build

TurboPi is easy to build with instruction. You can enjoy the fun of building by build a robot.

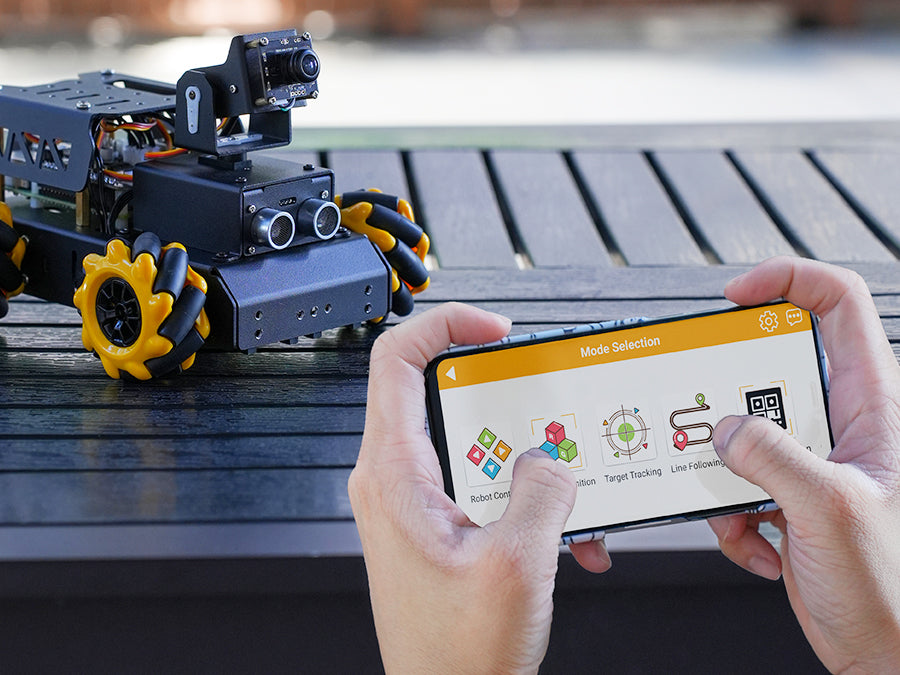

APP Control

WonderPi APP supports Android and iOS. Switch game modes easily and quickly to experience various AI games.

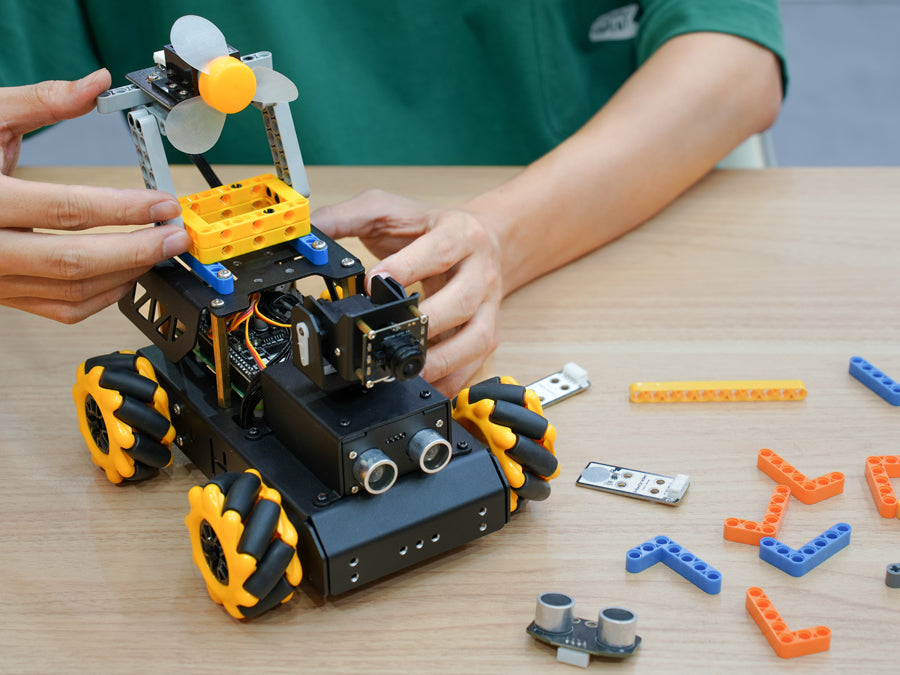

Unlimited Creativity

TurboPi can be expanded with various electronic modules and LEGO blocks to open up diverse interesting robot games.

Specification Parameters
Product dimension: 187*162*139mm
Weight: 0.8kg
Material: Metal bracket
Camera resolution: 480P
DOF of camera pan tilt: 2DOF Horuzontal/ vertical rotation angle: 180°
Power supply: 2* 18650 Lipo batteries
Working life: 11.1V 2500mAh 10C lithium battery
Working hour: About 60min
Hardware RaspberryPi CM4 & RaspberryPi expansion board
Software: VNC software(PC) + WonderPi APP(iOS/ Android)
Communication metnod: Wi-Fi, Ethernet
Servo: LFD-01 anti-blocking servo
Control method: PC/ phone control
Package size: 267*230*72mm(length*width*height)
Package weight: About 1.2kg
Product Parameters
Dimensional Diagram
LFD-01 Servo Parameters
HD Wide Angle Camera

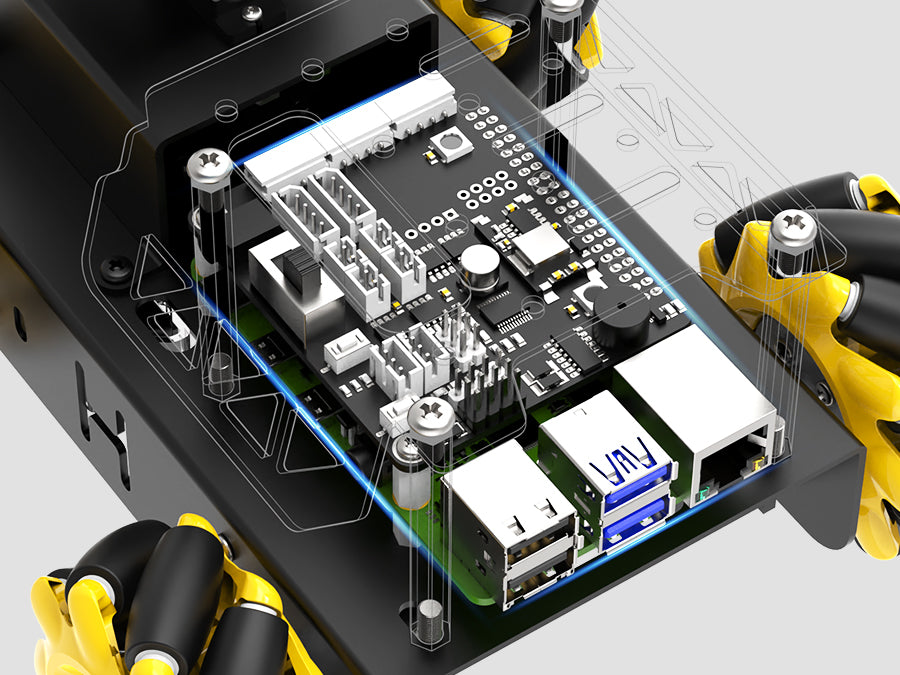

Raspberry Pi Expansion Board
Abundant Learning Materials

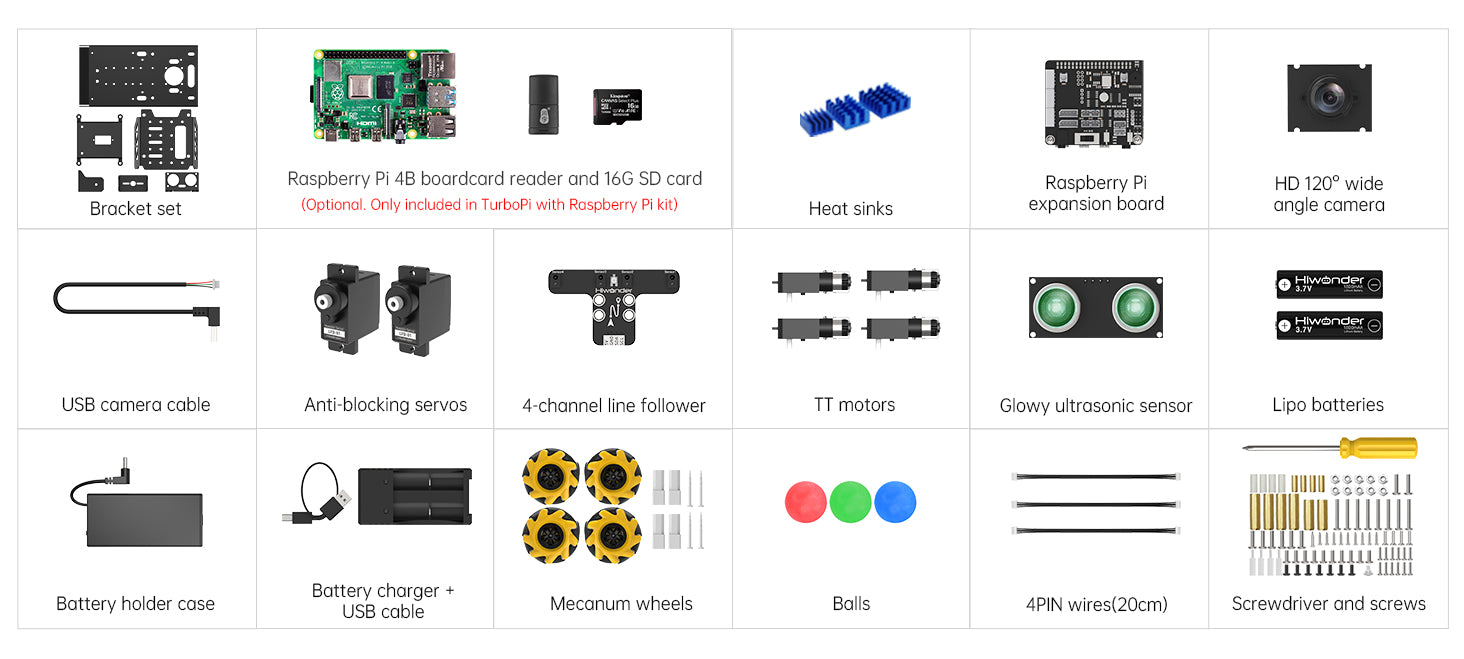

TurboPi Packing List
Specifications

Item Specification
Product dimension 187*162*139mm
Weight 0.8kg
Material Metal bracket
Camera resolution 480P
DOF of camera pan tilt 2DOF Horuzontal/ vertical rotation angle: 180°
Power supply 2* 18650 Lipo batteries
Working life About 60min
Hardware RaspberryPi CM4 & RaspberryPi expansion board
Software VNC software(PC) + WonderPi APP(iOS/ Android)
Communication metnod Wi-Fi, Ethernet
Servo LFD-01 anti-blocking servo
Control method PC/ phone control
Package size 267*230*72mm(length*width*height)
Package weight About 1.2kg
